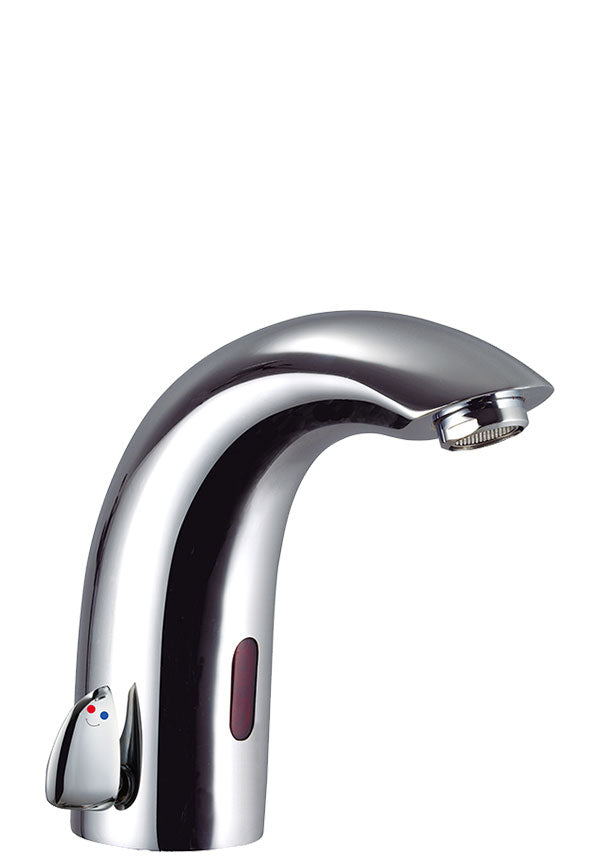

ATT-0044 Curve neck design electronic sensor tap Features: Curve-neck design sensor tap Ceramic mixing valve built-in Manual temperature control lever Hygienic and upto 70% water conservation Independent battery holder: 4XAA Alkaline batteries (*subject to availability) Hands free and reliable infrared activation technology Exquisite and stylish swan-neck design Solid brass construction 2x flexible supply hoses
Contents: 1x Sensor Tap 1x Battery Box 4x AA Alkaline Batteries (*Subject to availability) 1x Trasformer 2x Flexible G1/2" *600mm Connection Hoses Fittings and Screws
Technical Details: Hottest temperature: 55°C Coldest temperature: 25°C Diameter of 'inlet' flexible hoses: G1/2” Water pressure range: 0.7 (Min) - 8 Bar (Max) Voltage: DC6V (or AC Transformer with 6v Output) Power consumption: =0.3MW Sensing distance: 10-31cm Respond time: 1 Second Electricity Consumption: 4xAA alkaline batteries (2 years lifespan depending on level of usage) Silent Consumption: 0.003W Environment Temperature: 1-45 C Flow Rate: 5.7L/Per minute Pipe Threading: British Standard Whitworth (BSW) Note:
Gravity-fed water supply users: You'll need at least 0.75 bar of equal pressure from hot and cold supply in order for this tap to work properly. A pressure pump/booster can be used to increase the water pressure. In summary, the pressure of 'hot' and 'cold' supply feeds must be equal for the temperature control to work efficiently.
This sensor tap can be powered by either Batteries and Mains (AC+DC) *** A transformer is supplied This sensor tap comes with double water supply feeds
Drilling a hole? Standard 35mm hole is fine
LIMITED WARRANTY Autotaps Limited warrants its products (Electronic Sensor Taps) to be made of first class materials, free from defects of material or workmanship under normal use and to perform the service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a period of three years from date of purchase.
During this period, Autotaps Limited will, at its option, repair or replace any part or parts which prove to be thus defective if returned to Autotaps Limited, at customer’s cost, and this shall be the sole remedy available under this warranty. No claims will be allowed for labour, transportation or other incidental costs. This warranty extends only to persons or organizations who purchased Autotaps products directly from Autotaps Limited. This warranty does not cover the life of the batteries.
