ATX-0876

£220.00

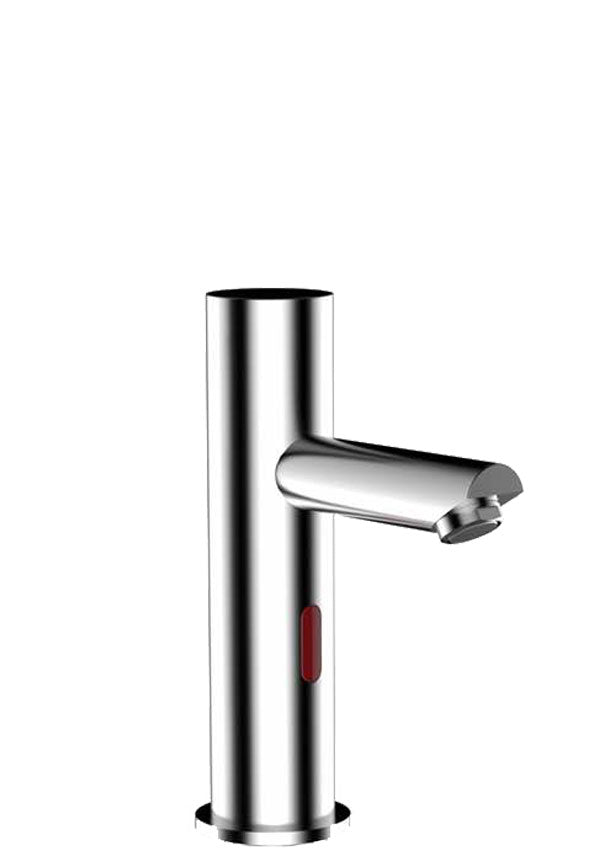

ATX-0876 Tall pillar design monobloc automatic tap

Features:
Monobloc 'Pillar' design
Built-in solenoid valve (No control box required)
Single supply sensor tap
Power Options: Mains/4XAA Alkaline batteries (up-to 2yr lifespan)
Hands free infrared activation

Exquisite and stylish 'pillar-style' design
Solid brass construction
Flexible supply hose

Technical Details:
Water pressure range: 0.75 (Min) - 7 Bar (Max)
Voltage: DC6V or AC220V-240V (6V Output)
Power consumption: =0.3mW
Sensing distance: 6-24cm
Respond time: 1 Second
Battery Consumption (DC): 4xAA alkaline batteries (up-to 2yr lifespan)
Silent Consumption: 0.003mW
Environment Temperature: 1-45 C
Flow Rate: 6L/Per minute
Flexible hose pipe inlet threading: DN10
Noise Class: 1
Finish: Chrome-plated
Voltage: DC6V or AC220V-240V (6V Output)

Contents:
1x Sensor Tap
1x Flexible G1/2" *600mm Connection Hose (DN10)
1x Battery box
1x Transformer

Special Notes:

Temperature control:
This sensor tap is designed to be supplied with cold or pre-mixed water.
Consideration should be given to safe hot water delivery and the use of an appropriate temperature reduction device.

Manual blending valve:
ABV-0012
Water temperature is controlled manually by hand.

Thermostatic mixer valves:
ATV-9004B
ATV-9004C
Water temperature is regulated automatically.

Frequently asked question:

Question:
What's difference between 'ATV-9004B' and 'ATV-9004C'?

Answer:
They're literally both the same thing, except for only one difference.
ATV-9004B has a 'wall-mounting' brackets attached to it, while ATV-9004C has a 'female' connection end, which can be connected directly to a control box 'inlet'.

Water pressure:
Water pressure range: 0.7 (Min) - 8 Bar (Max) (1 bar or above for best performance)

Power Options
DC = Direct Current (Battery source)
AC = Alternate Current (Mains electricity supply)

DC only: The tap can run off batteries only (4 x AA batteries)
We recommend using alkaline batteries, which should be new and of the same brand.

AC only: The tap can run off Mains power supply only.
A 'step-down' transformer is supplied, type AC220V-240V (with 6V Output)

AC + DC: The tap can run off both AC (Mains) + DC (Batteries) connected at the same time.
This means, AC (Mains supply) will run the tap as normal, while the DC (batteries) ramains dormant, and acts as a backup power should the AC power fails.

Drilling a hole?
Standard 32mm hole will suffice.

LIMITED WARRANTY
Autotaps Limited warrants its products (Electronic Sensor Taps) to be made of first class materials, free from defects of material or workmanship under normal use and to perform the service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a period of three years from date of purchase.

During this period, Autotaps Limited will, at its option, repair or replace any part or parts which prove to be thus defective if returned to Autotaps Limited, at customer’s cost, and this shall be the sole remedy available under this warranty. No claims will be allowed for labour, transportation or other incidental costs. This warranty extends only to persons or organizations who purchased Autotaps products directly from Autotaps Limited. This warranty does not cover the life of the batteries.
